Foundry Sand Mixing Machine / Resin Sand Mixer In Sand Production Line

Foundry Sand Mixing Machine/ Resin Sand Mixer in Resin Sand Production Line

Product Description

Product performance description

The mixing arm has a frame structure supporting two half shells, which form the mixing tube. These are split length-ways and are hinged at a single point behind the sand inlet. This opening arrangement gives easy access to the mixing shaft and blades for maintenance and cleaning. The mixing tube may be fitted with are movable wear lining (optional). It has a mixer shaft with removable/interchangeable forged steel blades with tungsten carbide plates on every wear face.

Continuous arms resin ( sand ) sand mixer is single single mixed models, the conveyor from the primary and secondary sand stir stir cage cage components. Low-speed conveyor transport cage stir , stir sand mixed with high-speed cage .
mixing sand with full open cage type , carbide blades welded on sand , more than 2,000 hours in its life;conveying fluid using imported Italian mechanical diaphragm metering pumps curing agent ( hardener pump ) , and a gear pump ( with
variable speed motor ) conveying the resin can also be based on user demand for a full selection of imported gear pump delivery .mixed sand sand is very small head and tail , electrical control system adopts imported PLC control to ensure 100% machine utilization rate .conveying fluid valve ( commonly known as: proximal control valve ) can be used decay liquid feed valve ( backflow valve ) , the valve can be shut down non-stop pumps, mixer valve in operating position to work does not work when you hit the reflux position again when the call to the working position working to solve the pump head and tail when frequent problem of excessive sand .

resin sand mixer

continuous sand mixer

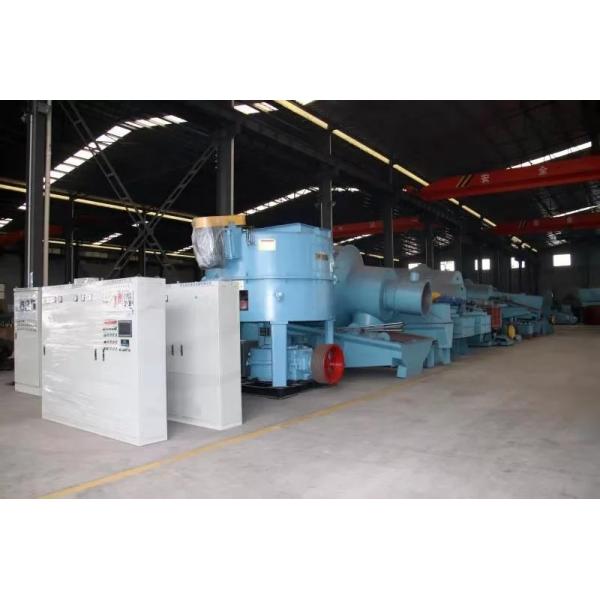

Foundry Sand Mixing Machine / Resin Sand Mixer In Sand Production Line Images
