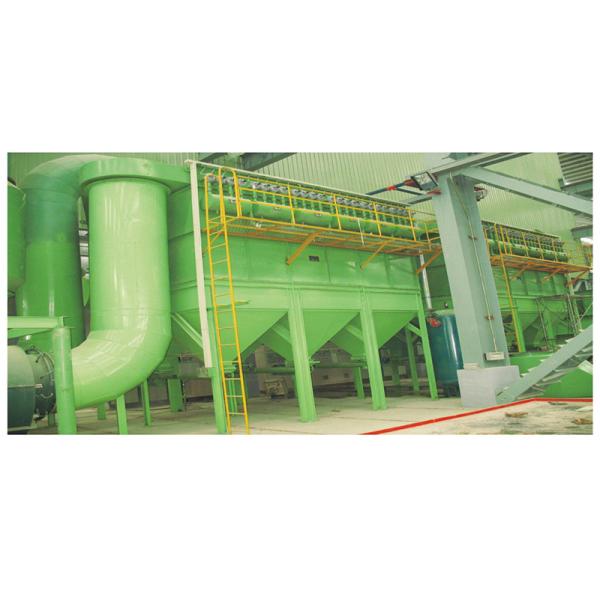

Seperated room pulse bag dust collector for sand moulding machines

Brand Name : HST

Model Number : 4C

Certification : CE,ISO 9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 30 working days

Packaging Details : in container directly

Sand casting machine : Dust Collector

Color : Green

Industry : Sand Casting

Control : PLC automatic control

easy operation : more safety

Contact Now

Uses and Features

The dust collector is a new technology product developed by the company on the basis of introducing and digesting Japanese technology. It is widely used in domestic metallurgical, cement, mining and other enterprises. The effect can reach the advanced international level in the 1990s. The machine adopts full automatic control of PLC, pulse back blowing of compressed air compartment and regular ash cleaning. The discharge concentration at the outlet is lower than the national standard of 50mg/m_discharge. The dust collector can change bags from room to room without stopping. It has the advantages of simple operation and strong safety. It is an effective equipment to solve the problem of using dust collector in harsh environment.

Technical parameters

Product model parameter	HST-3C	HST-4C	HST-5C	HST-6C	HST-7C	HST-8C	HST-9C	HST-10C	HST-11C	HST-12C
Number of filter bags	168	224	280	336	392	448	504	560	616	672
Number of chambers	3	4	5	6	7	8	9	10	11	12
Filtration area(㎡)	241	322	402	483	564	644	725	805	885	966
filtering air velocity and volume	13900-15800	20900-21100	26400-28000	35000=41600	42000-46225	42260-49000	48300-56000	52800-63000	58000-70000	63400-76500
Inlet concentration(g/Nm³)	<200
Dust removal efficiency	99.9％
Compressed air consumption(Nm³/h)	5	6.5	8.5	10	12	13.5	15	17	18.5	20
Compressed air consumption(Nm³/h)	0.5-0.7Mpa
Pulse valve	12	16	20	24	28	32	36	40	44	48
Pneumatic switching valve	3	4	5	6	7	8	9	10	11	12
Discharge screw	200*1.1kw	200*1.1kw	200*1.1kw	200*1.1kw	200*2.2kw	200*2.2kw	200*3kw	200*3kw	2002.2kw2	2002.2kw2
resistance	1200-1600pa
